| Section | Cross Section V-Belt Dimension | Belt Range | |||
|---|---|---|---|---|---|
| Top Width (mm) | Thickness (mm) | Angle (Deg) | Min | Max | |
| Z (FHP) | 10 | 6 | 40 | 15" | 195" |
| A | 13 | 8 | 40 | 18" | 180" |
| B | 17 | 11 | 40 | 22" | 600" |
| C | 22 | 14 | 40 | 36" | 600" |
| D | 32 | 19 | 40 | 100" | 600" |
| E | 38 | 23 | 40 | 180" | 698" |
| Belt Length Calculation | |||
|---|---|---|---|
| Section | Lp to La (mm) | Li to Lp (mm) | Li to La (mm) |
| Z | 16 | 22 | 38 |
| A | 17 | 33 | 50 |
| B | 36 | 43 | 69 |
| C | 32 | 56 | 88 |
| D | 40 | 79 | 119 |
| E | 53 | 92 | 145 |

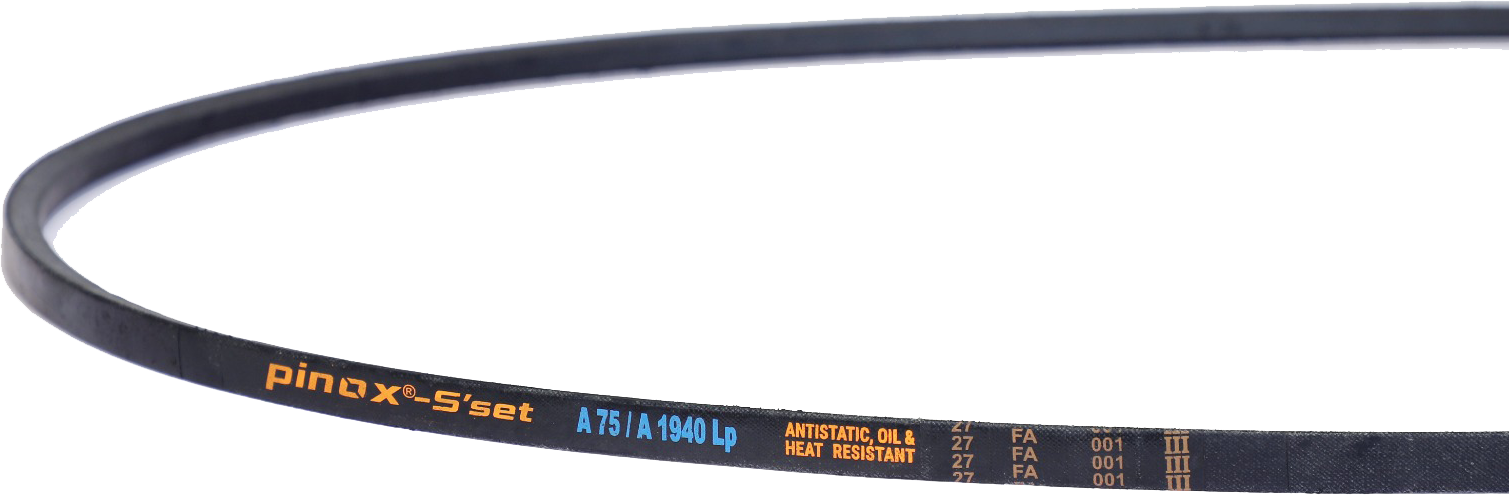

Pinox industrial V-belt is a reliable, more efficient and cost-effective solution for power transmission in a wide range of applications.
