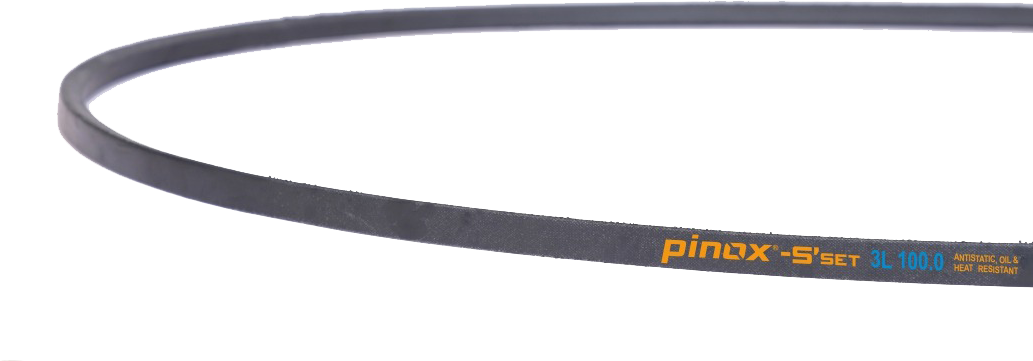

images
Features of PINOX - S'set LIGHT DUTY V-BELTS
  • Oil & Heat Resistance
  • Antistatic
  • High Tensile Strength and Low Stretch
  • Excellent Abrasion & Tear Resistance
  • Compatible for all Light-Duty Applications
Application
Lawn mower, Snow blower
Section Cross Section Dimension Belt Range
Top Width (mm) Thickness (mm) Angle (Deg) Min Max
3L 10.0 6.0 40 15" 195"
4L 13.0 8.0 40 18" 180"
5L 17.0 10.0 40 22" 600"
Belt Length Calculation
Section Lp to La (mm) Li to Lp (mm) Li to La (mm)
3L 16 22 38
4L 17 33 50
5L 26 43 69
